Exploded View Parts Ordering: 2012-1H_348

2012-1H 348 Online Parts Manual

Serial No: 348-75101 End Date 348-78170

Return to manuals

Page Code: CM-10-7

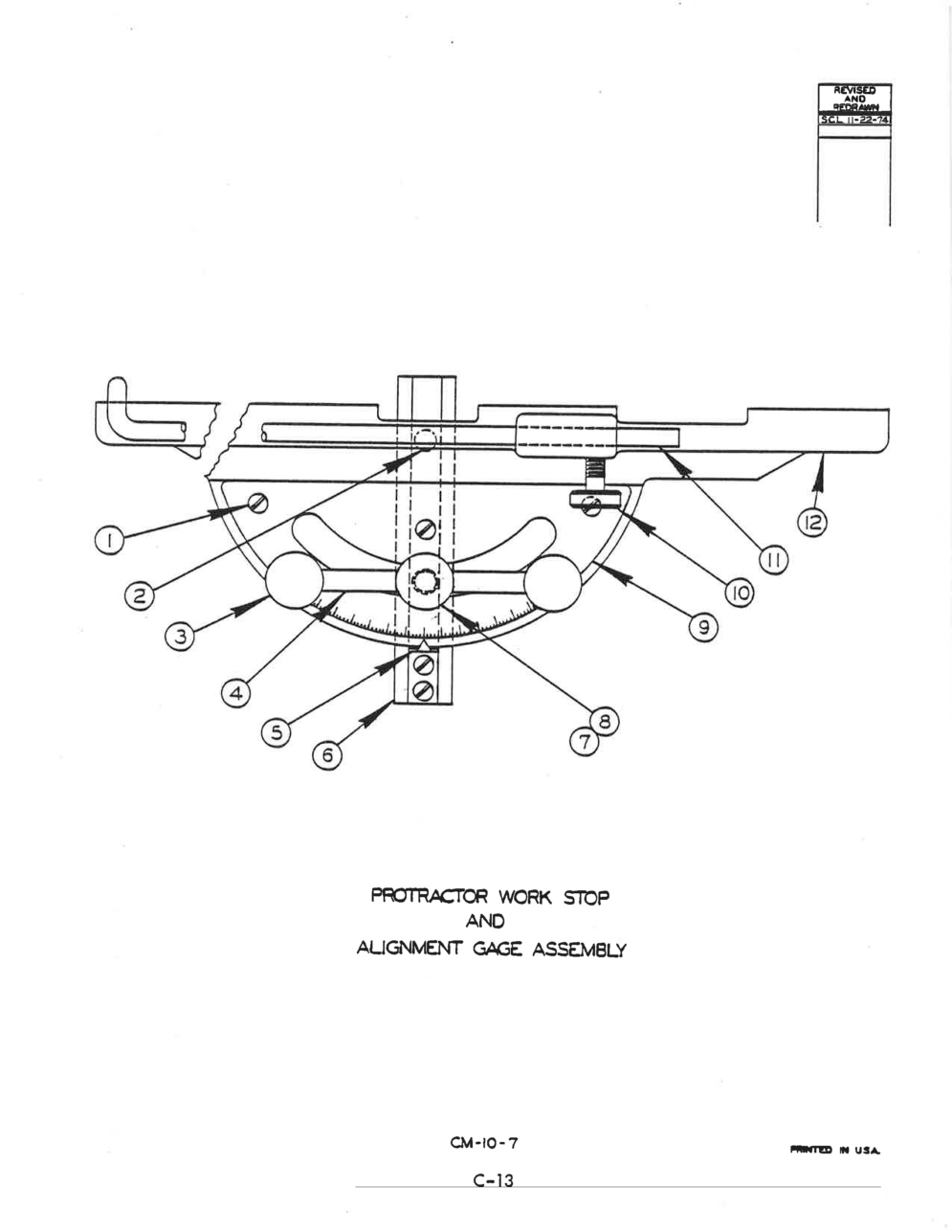

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: REF. Part Number: 090-514951 Description: Protractor Work Stop & Alignment Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: REF. Part Number: 090-547589 Description: Protractor Work Stop & Alignment Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach #10-24NC x 3/8 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 114-004732 Description: Dowel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-339713 Description: Knob Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: *114-115183 Description: Knob Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-116344 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-116336 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-253022 Description: Tee Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: *090-291329 Description: Tee Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-116351 Description: Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: *091-011189 Description: Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-992651 Description: Washer, Plain 7/16 S.A.E. Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 135-016145 Description: Protractor Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 134-174010 Description: Thumb Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 135-019768 Description: Gage Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-514969 Description: Mitre Head Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Starred Items Are Part Of Assembly #090-547589 Units Per Assembly: Availability: Call For Info Price:
