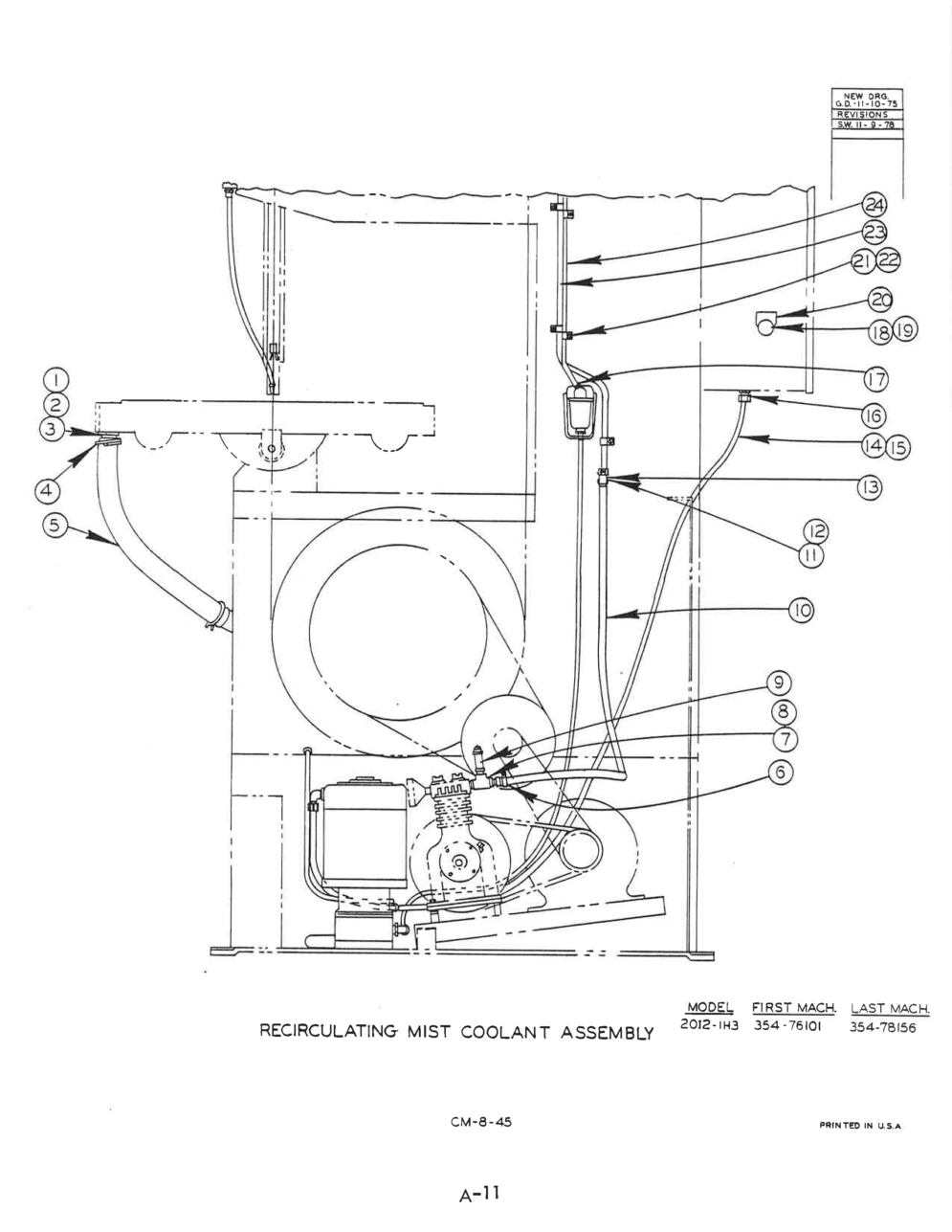

Exploded View Parts Ordering: 2012-1H3_354
Page Code: CM-8-45
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref. |
Part Number:
095-049987 |
Description:
Coolant, Recirculating Mist Type |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
090-156183 |
Description:
Lock Nut |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
2 |
Part Number:
090-109802 |
Description:
Seal Ass'y. |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
3 |
Part Number:
090-170416 |
Description:
Pipe |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
4 |
Part Number:
091-217521 |
Description:
Hose Clamp |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
5 |
Part Number:
091-061002 |
Description:
Hose 1-1/4" I.D. |
Units Per Assembly:
A.R. |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
135-068880 |
Description:
Hose Clamp |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
135-008472 |
Description:
Service Tee |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
8 |
Part Number:
090-020041 |
Description:
Barbed Insert |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
9 |
Part Number:
091-180885 |
Description:
Safety Valve |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
10 |
Part Number:
090-000084 |
Description:
Hose 3/8 I.D |
Units Per Assembly:
A R. |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
11 |
Part Number:
090-020041 |
Description:
Barbed Insert |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
12 |
Part Number:
135-068880 |
Description:
Hose Clamp |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
13 |
Part Number:
091-071084 |
Description:
90 Degree Male Elbow |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
14 |
Part Number:
090-005208 |
Description:
Conduit 1/2" |
Units Per Assembly:
A.R. |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
15 |
Part Number:
090-007246 |
Description:
#12 Wire, Black |
Units Per Assembly:
A.R. |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
16 |
Part Number:
090-145459 |
Description:
Connector 1/2" |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
17 |
Part Number:
091-047134 |
Description:
Hose Clamp |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
18 |
Part Number:
091-293407 |
Description:
Push Button Operator |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
19 |
Part Number:
091-225300 |
Description:
Magnetic Starter |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
20 |
Part Number:
091-241026 |
Description:
Legend Plate |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
21 |
Part Number:
091-990168 |
Description:
Scr. Truss Hd. Mach. #10-24U NC x 1/2" |
Units Per Assembly:
12 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
22 |
Part Number:
090-172479 |
Description:
Tubing Clamp |
Units Per Assembly:
12 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
23 |
Part Number:
090-002031 |
Description:
Tubing, Steel 3/8" I.D |
Units Per Assembly:
A.R. |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
24 |
Part Number:
090-002213 |
Description:
Tubing, Clear Plastic 1/4" I.D. |
Units Per Assembly:
A.R. |
Availability:
Call For Info
|
Price:
|
