Exploded View Parts Ordering: 2012-1H3_354

2012-1H3 354 Online Parts Manual

Serial No: 354-76101 End Date 354-78156

Return to manuals

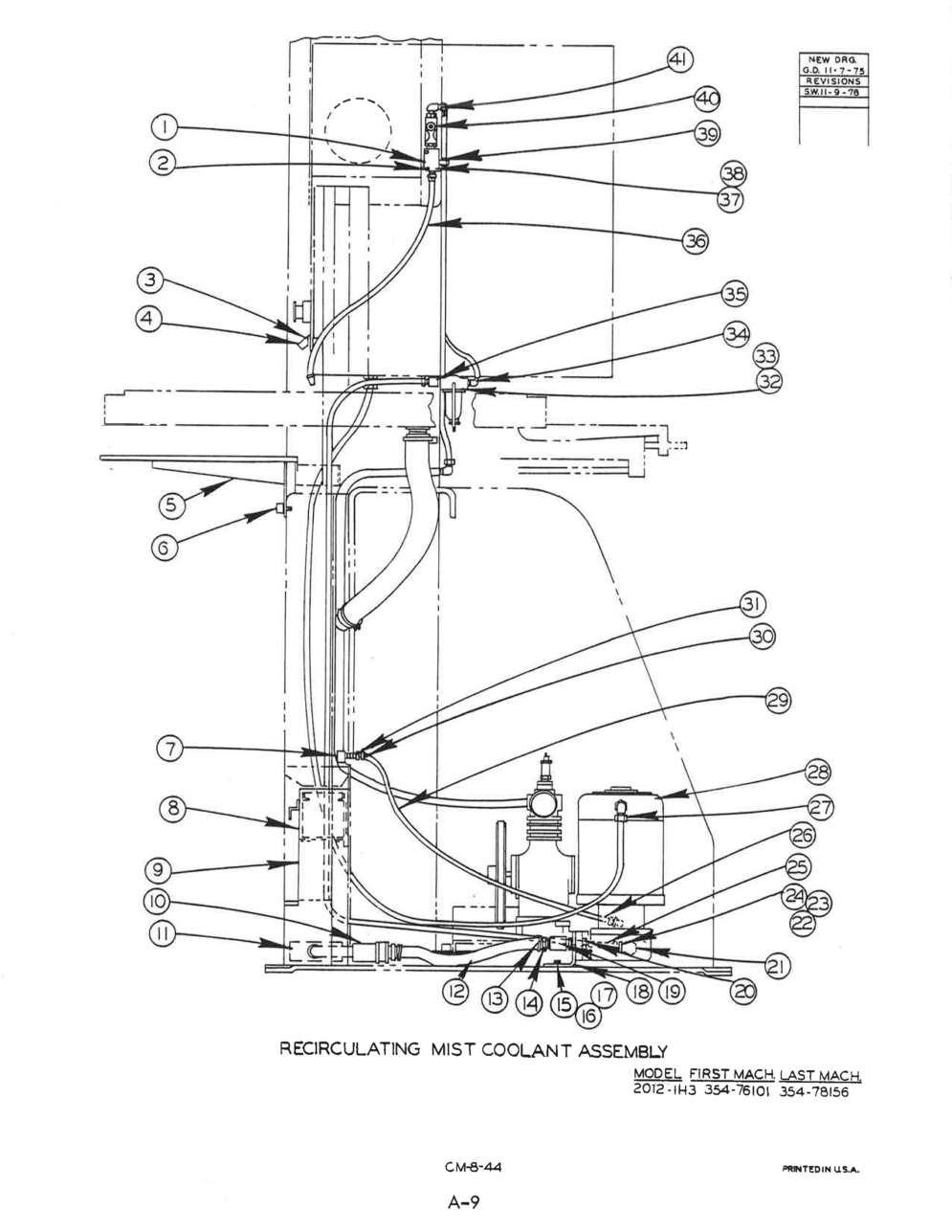

Page Code: CM-8-44

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 095-049987 Description: Coolant, Recirculating Mist Type Ass'y Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 093-049443 Description: Coolant Manifold Ass'y. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-988782 Description: Scr., Rd. Hd. Mach.#10-24UNC x 1-1/2" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-994625 Description: Scr., Rd. Hd. Self Tapping #8-32 x 1/4" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-030487 Description: Spring Clip Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 094-063369 Description: Drip Pan Ass'y Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 111-024014 Description: Thumbscrew Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 105-275069 Description: St. Elbow Units Per Assembly: 1 Availability: In Stock Price: $6.20
Index No Ref.: 8 Part Number: 094-066487 Description: Chip Basket Ass'y Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 094-063377 Description: Coolant Drawer Ass'y Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-118753 Description: Coupler Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-209214 Description: Coolant Strainer Ass'y Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-000134 Description: Hyd: Hose 1/2 I.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-179037 Description: Hose Clamp Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-082124 Description: Barbed Insert Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-980466 Description: Scr., Hex. Hd. Cap 3/8-16UNC x 1" Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-993329 Description: Washer, Lock 3/8 Med. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-991265 Description: Nut, Hex 3/8-16UNC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-118324 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 135-008456 Description: Coupling Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-052580 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 117-135210 Description: 90 Degree St. Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 135-035061 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-033167 Description: Barbed Insert Units Per Assembly: 1 Availability: In Stock Price: $2.84
Index No Ref.: 24 Part Number: 091-047134 Description: Hose Clamp Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-002213 Description: Tubing, Clear Plastic 1/4 I.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 105-275069 Description: St. Elbow Units Per Assembly: 2 Availability: In Stock Price: $6.20
Index No Ref.: 27 Part Number: 090-145046 Description: 90 Degree Connector 1/2" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 090-418781 Description: Coolant Pump Ass'y (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 090-002213 Description: Tubing, Clear Plastic 1/4 I.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-047134 Description: Hose Clamp Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 090-160011 Description: Barbed Insert Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 090-158064 Description: Filter Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 114-145287 Description: Close Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-081166 Description: 90 Degree Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 090-160011 Description: Barbed Insert Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 093-049443 Description: Coolant Manifold Ass'y Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 090-040973 Description: Air Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 090-030743 Description: 90 Degree Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-199778 Description: Coolant Tube Sub-Ass'y. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-199109 Description: Manifold Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 105-275077 Description: Sight Feed Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-081166 Description: 90 Degree Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
