Exploded View Parts Ordering: 2012-1H3_354

2012-1H3 354 Online Parts Manual

Serial No: 354-76101 End Date 354-78156

Return to manuals

Page Code: CM-7-25

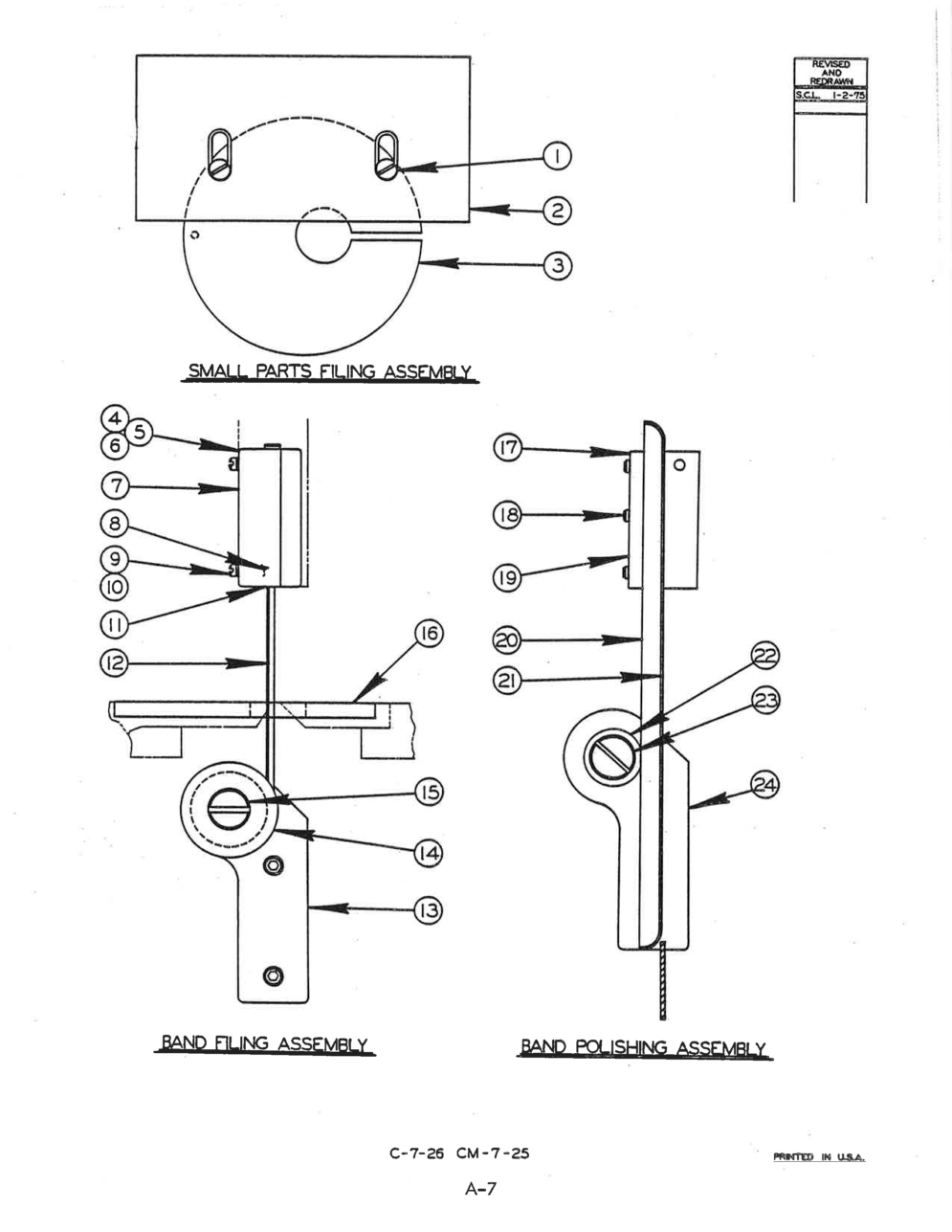

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-076456 Description: Small Parts Filing Ass'y (1612,1612-0,1612-H,1612-1,2013,2013-1,2013-0,2013-10,2012-1A,2012-A,2012-AT,2012-1AT,2612-H,2612-1,3612,3613-0,3612-H,3613-1) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-987487 Description: Screw, Fl. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 2 Part Number: 090-120460 Description: Small Part Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-120452 Description: Center Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-447806 Description: Band Filing Ass'y (1612,1612-0,1612-H,1612-1,1613-2,1612-3,2013,2013-1,2013-0,2013-10,2012-A,2012-1A,2012-AT,2012-1AT,2612-2H,2613-3,3612-H,3613-1,3612-3,6013-3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 091-119487 Description: Band Filing Ass'y (1612,1612-0,1612-H,1612-1,1612-3,2013,2013-1,2013-0,2013-10,2012-A,2012-1A,2012-AT,2012-1AT,3612-H,3612-3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 091-327734 Description: Band Filing Ass'y (1612,1612-0,2013,2013-1,2013-0,2013-10,2012-A,2012-AT,2612-H,2612-1,3612,3613-0) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-049947 Description: Band Filing Ass'y (1612,1612-0,2013,2013-1,2013-0,2013-10,2012-A,2012-AT,2612-H,2612-1,3612,3613-0) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-485327 Description: Band Filing Ass'y (1612-3,2612-2H,2613-3,3612-3,6013-3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-014388 Description: Band Filing Ass'y (1613-3,2612-2H,2613-3,3612-3,6013-3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-447814 Description: Band Filing Ass'y (2613-2,3613-2,6013-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-455973 Description: Band Filing Ass'y (3613-2, 6013-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-274879 Description: 1/4" File Guide Ass'y (Ass'ys # 44780,#404994, #44781) Units Per Assembly: 1 Availability: In Stock Price: $5.33
Index No Ref.: Part Number: 090-274903 Description: 1/4" File Guide Ass'y (Ass'ys #111948,#132773,#45597) Units Per Assembly: 1 Availability: In Stock Price: $10.00
Index No Ref.: Part Number: 090-340969 Description: 1/4" File Guide Ass'y.(Ass'y #48532) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-340993 Description: 1/4" File Guide Ass'y (Ass'y #401438) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-274887 Description: 3/8" File Guide Ass'y (Ass'ys #44780,#404994,#43781) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-274911 Description: 3/8" File Guide Ass'y (Ass'ys #111948,#132773,#45597) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-340977 Description: 3/8" File Guide Ass'y (Ass'y #48532) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-341033 Description: 3/8" File Guide Ass'y (Ass'y #401438) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-274895 Description: 1/2" File Guide Ass'y (Ass'ys #44780,#404994,#44781) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-274929 Description: 1/2" File Guide Ass' y (Ass'ys.#111948,#132773,#45597) Units Per Assembly: 1 Availability: In Stock Price: $4.12
Index No Ref.: Part Number: 090-340985 Description: 1/2" File Guide Ass'y (Ass'ys #48532) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-341041 Description: 1/2' File Guide Ass'y (Ass'y #401438) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-274176 Description: Bracket (Ass'y #27487) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-274184 Description: Bracket (Ass'y #27490) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-340951 Description: Bracket (Ass'y #34096) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-340944 Description: Bracket(Ass'y #34099) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-274200 Description: Bracket (Ass'y #27488) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-274218 Description: Bracket (Ass'y #27491) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-340936 Description: Bracket (Ass'y #34097) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-340928 Description: Bracket(Ass'y #34103) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-274192 Description: Bracket(Ass'y #27489) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-274226 Description: Bracket (Ass'y #27492) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-340910 Description: Bracket (Ass'y #34098) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-340902 Description: Bracket(Ass'y #34104) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 106-093149 Description: Washer (Ass'ys #27487,#27490,#34096,#34099) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093131 Description: Washer (Ass'ys #27488,#27491,#34097,#34103,#27489,#27492,#34098,#34104) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-986885 Description: Screw, Fil. Hd. Mach.#4-40NC x 5/8 (Ass'ys #27487,#27490, #34096, #34099) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-986992 Description: Screw, Fil. Hd. Mach. #10-24 NC x 5/8 (Ass'y #37488,#27491,#34097,#34103,#27489,#27492,#34098,#34104) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-993154 Description: Washer, Lock #4 Std.(Ass'ys #27490,#34099) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-993196 Description: Washer, Lock #10 Std.(Ass'ys #27488,#27491,#34097,#34103,#27489,#27492,#34098,#34104) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 106-093073 Description: Insert (Ass'ys #27487,#34096) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093032 Description: Insert (Ass'ys #27490,#34099) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093016 Description: Insert (Ass'ys #27488,#34097) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093057 Description: Insert (Ass'ys #27491,#34103) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093099 Description: Insert (Ass'ys #27489,#34098) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093115 Description: Insert(Ass'ys #27492, #34104) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 106-093081 Description: File Guide (Ass'ys #27487,#34096) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093040 Description: File Guide(Ass'ys #27490, #34099) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093024 Description: File Guide(Ass'ys #27488, #34097) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093065 Description: File Guide(Ass'ys #27491,#34103) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093107 Description: File Guide(Ass'ys #27489,#34098) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 106-093123 Description: File Guide(Ass'ys #27492, #34104) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 134-093137 Description: Guide Plates (Not Shown) (Ass'ys #27490, #34099) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 134-094028 Description: Pin (Not Shown)(Ass'ys #27440, #34099) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-013715 Description: Adapter Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 134-093129 Description: File Guide Back-up(Ass'ys #44780,#111948,#132773,#404994, #44781,#45597) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-109314 Description: File Guide Back-up (Ass'ys #48532, #401438) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 134-090018 Description: Screw Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-038019 Description: Head Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-038027 Description: Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-106279 Description: Center Plate(Ass'ys #44780,#111948,#48532,#401438) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-201285 Description: Center Plate(Ass'ys #132773,#404994) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 091-069575 Description: Band Polishing Ass'y (1611-H,1611-U,1612,1612-0,1612-H,1612-1,2013,2013-1,2013-0,2013-10,2012-A,2012-1A,2012-AT,2012-1AT,2612-H,2612-1,3612-U, 3612, 3613-0,3612-H,3613-1) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-290230 Description: Band Polishing Ass'y (1612-1,1613-2,1612-3,3613-1,3613-2,3612-3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-274853 Description: Band Polishing Ass'y (26-2, 60-2,2612-2H,2613-2,6013-2) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-274846 Description: Band Polishing Ass'y (16-2,16-3,36-2,36-3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-274861 Description: Band Polishing Ass'y (26-3,60-3,2613-3,6013-3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 091-069583 Description: Band Polishing Ass'y (2612-1) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-166869 Description: Band Polishing Sub-Ass'y (Ass'ys #106957,#29023,#27485,#27484,#106958) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-274143 Description: Band Polishing Sub-Ass'y (Ass'y #27486) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-986968 Description: Screw, Fil. Hd. Mach. #10-24 NC x 3/8 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-274127 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 106-103013 Description: Backup Plate(Ass'y #16686) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 135-099232 Description: Backup Plate(Ass'y #27414) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 134-105055 Description: Backup Cloth Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 134-104025 Description: Guide Backup Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 134-090018 Description: Screw Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-038019 Description: Head Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-038027 Description: Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 090-013715 Description: Adapter Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-105701 Description: Center Plate (Not Shown)(Ass'ys #106957,#106958) Units Per Assembly: 1 Availability: Call For Info Price:
