Exploded View Parts Ordering: 2012-1H3_354

2012-1H3 354 Online Parts Manual

Serial No: 354-76101 End Date 354-78156

Return to manuals

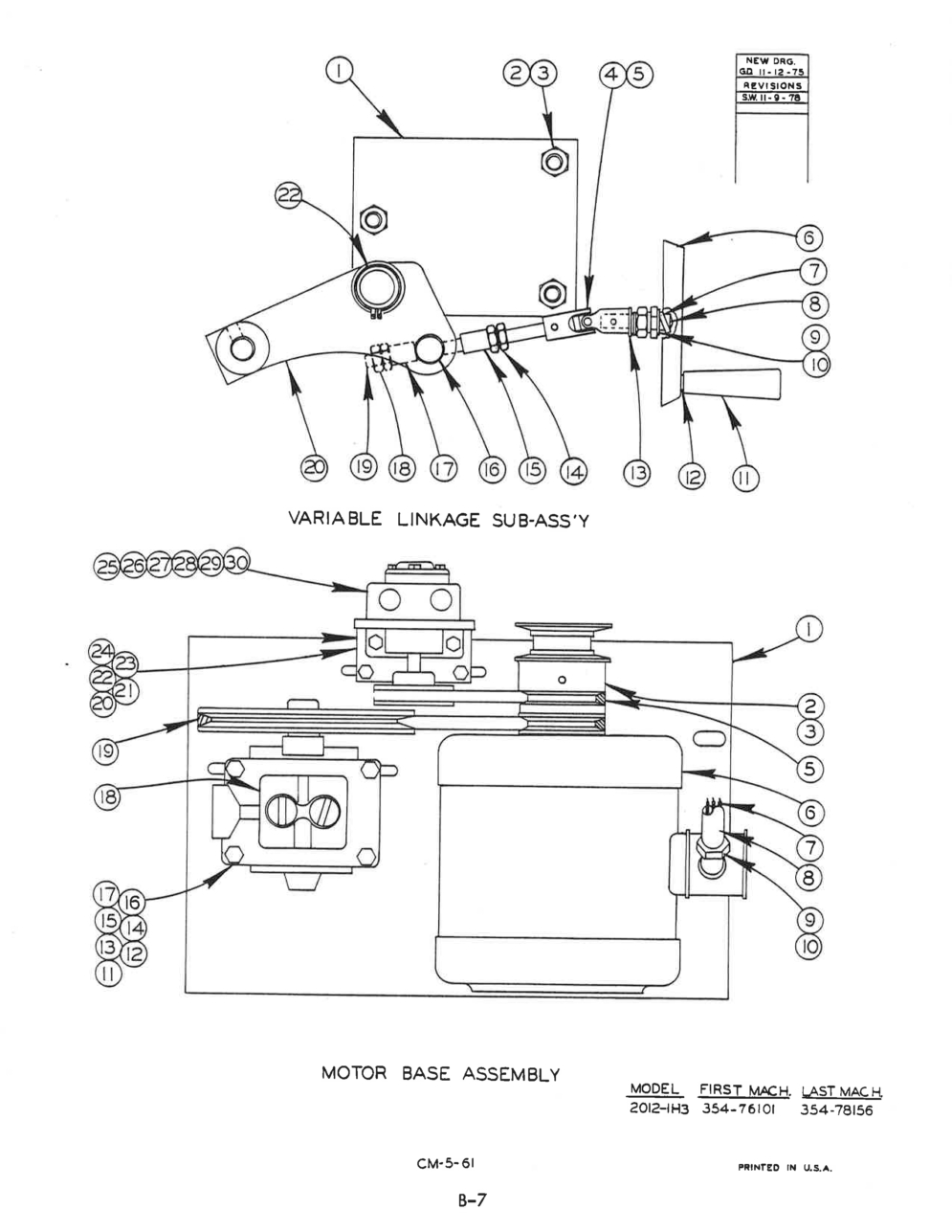

Page Code: CM-5-61

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 094-066453 Description: Variable Linkage Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 093-025435 Description: Base Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-991422 Description: Nut, Hex. Jam 3/4-16 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-175993 Description: Adjusting Screw Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 134-055243 Description: Universal Joint Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-042573 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-425356 Description: Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 8 Part Number: 091-072801 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-245944 Description: Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-991422 Description: Nut, Hex. Jam 3/4-16 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-181164 Description: Handle Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 12 Part Number: 091-181172 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-992669 Description: Flat Washer 1/2 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 105-134100 Description: Screw Stop Nut Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-079799 Description: Spacer Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-061755 Description: Trunnion Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-079799 Description: Spacer Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 105-134100 Description: Screw Stop Nut Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 093-049070 Description: Variable Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-423518 Description: Arm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 135-075588 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 22 Part Number: 090-029158 Description: Spacer(Not Shown) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-067188 Description: Drive Motor Base Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 094-045895 Description: Motor Base Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 094-066461 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-984278 Description: Scr., Soc. Set 1/4-20 x 3/4" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 134-055078 Description: V-Belt, Motor to Oil Pump Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-113548 Description: Motor 3 HP Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: Description: Wire Stranded #12 (Purchased Locally) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-005208 Description: Sealtite Conduit 1/2" Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-145079 Description: Conduit Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-350785 Description: Reducing Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-980292 Description: Scr., Hex. Hd. Cap 5/16-18 x 1" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-211607 Description: Spacer Units Per Assembly: 2 Availability: In Stock Price: $26.82
Index No Ref.: 12 Part Number: 091-211615 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-211631 Description: Plate Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-980342 Description: Scr., Hex. Hd. Cap 5/16-18 x 2-1/2" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-992628 Description: Washer, Flat 5/16 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-993238 Description: Washer, Lock 5/16 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-991224 Description: Nut, Hex. 5/16-18 Units Per Assembly: 7 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 094-019577 Description: Air Compressor (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-027764 Description: V-Belt, Motor To Air Pump Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-992628 Description: Washer, Flat 5/16 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-993238 Description: Washer, Lock 5/16 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 093-043677 Description: Mounting Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-980300 Description: Scr., Hex. Hd. Cap 5/16-18 x 1-1/4" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 090-020520 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-984377 Description: Scr., Soc. Set 5/16-18 x 1/2" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-993238 Description: Washer, Lock 5/16 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 090-061136 Description: Oil Pump (Hydraulic) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-087841 Description: Mounting Foot Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-980276 Description: Scr., Hex. Hd. Cop 5/16-18 x 3/4" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-993329 Description: Washer, Lock 3/8(Not Shown) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-980474 Description: Scr., Hex. Hd. Cap 3/8-16 x 1-1/4"(Not Shown) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-991265 Description: Nut, Hex. 3/8-16 (Not Shown) Units Per Assembly: 4 Availability: Call For Info Price:
