Exploded View Parts Ordering: 2012-1H3_354

2012-1H3 354 Online Parts Manual

Serial No: 354-76101 End Date 354-78156

Return to manuals

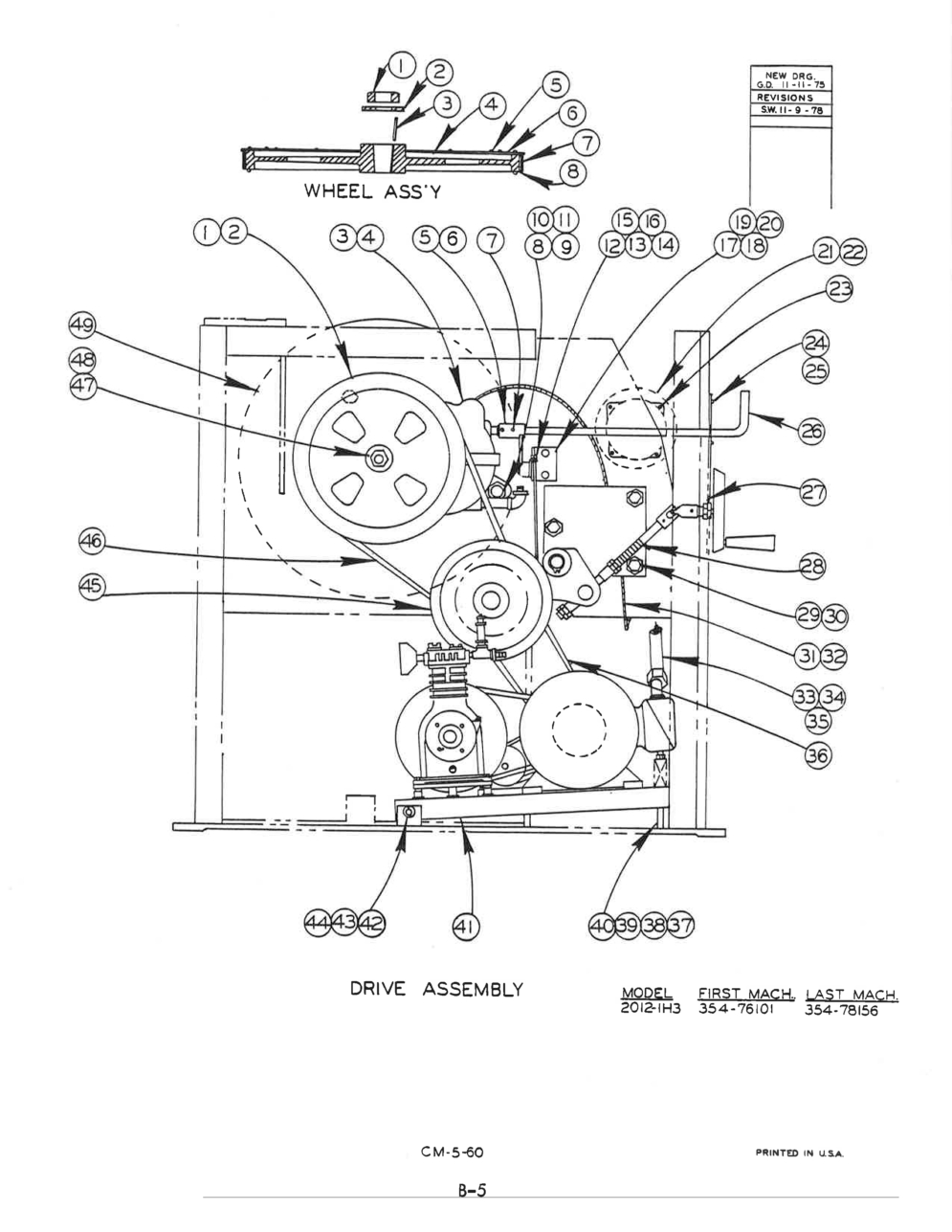

Page Code: CM-5-60

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 504996 Description: Drive Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 106-335161 Description: Woodruff Key Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-541186 Description: Input Sheave Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-501867 Description: MX-2 Transmission Ass'y.(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-096041 Description: Cauking Compound Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 6 Part Number: 090-216516 Description: Shift Lock Sub-Ass'y Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-984229 Description: Scr., Soc. Set1/4-20 x 1/4" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-028234 Description: Screw Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-991455 Description: Jam Nut 7/8-14 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-980730 Description: Scr., Hex. Hd. Cap 1/2-13 x 3" Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-993279 Description: Washer, Lock 1/2 Std. Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-399691 Description: Shift Lock Operating Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-076828 Description: Grip Ring Units Per Assembly: 2 Availability: In Stock Price: $1.19
Index No Ref.: 14 Part Number: 135-064707 Description: Collar Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 15 Part Number: 091-984096 Description: Scr., Soc. Set 10-24 x 3/16" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-318089 Description: Loctite "HV" Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-236431 Description: Shift Lock Sub-Ass'y Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-980441 Description: Scr., Hex. Hd. Cap 3/8-16 x 3/4" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-993329 Description: Washer, Lock 3/8 Std. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-052176 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 093-049435 Description: Speed Indicator Head Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 090-174780 Description: Bezel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-988717 Description: Scr., Rd. Hd. Mach. 10-24 x 5/8" Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-993972 Description: Drive Screw #2 x 1/4" Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-133819 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-402362 Description: Shift Lever Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 28 Part Number: 094-066453 Description: Variable Linkage Sub-Ass'y.(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-980557 Description: Scr., Hex. Hd. Cap 3/8-16 x 3-1/4" Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-993329 Description: Washer, Lock 3/8 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 090-102104 Description: Speedometer Cable Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 090-078320 Description: Cable Key Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 090-145459 Description: Conduit Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 090-145053 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 090-144114 Description: Flanged Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 090-129735 Description: Variable Speed Belt Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 135-087658 Description: Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 090-018755 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-992644 Description: Washer, Flat 3/8 Units Per Assembly: A.R. Availability: In Stock Price: $4.20
Index No Ref.: 40 Part Number: 091-991265 Description: Nut, Hex. 3/8-16 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 094-067188 Description: Motor Base Ass'y (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 093-039535 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-992644 Description: Washer, Flat Units Per Assembly: A.R. Availability: In Stock Price: $4.20
Index No Ref.: 44 Part Number: 091-995167 Description: Cotter Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 135-093359 Description: Variable Pulley Ass'y.(See Detail) Units Per Assembly: 1 Availability: In Stock Price: $2,473.33
Index No Ref.: 46 Part Number: 135-008035 Description: Variable Speed Belt Units Per Assembly: 1 Availability: In Stock Price: $137.23
Index No Ref.: 47 Part Number: 090-052069 Description: Lock Nut 5/8-18NF Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 091-992677 Description: Washer, 5/8 S.A.E. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 094-065570 Description: Lower Wheel Ass'y (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 091-984377 Description: Scr., Soc. Set 5/16-18 x 1/2" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: WHEEL DETAIL Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-125964 Description: Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-992685 Description: Washer, Flat SAE 3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 105-046049 Description: Woodruff Key Units Per Assembly: 1 Availability: In Stock Price: $2.35
Index No Ref.: 49 Part Number: 094-065570 Description: Lower Wheel Ass'y Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 094-064573 Description: Lower Saw Wheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-988675 Description: Scr., Rd. Hd. Mach. #10-24 x 3/8" Units Per Assembly: 22 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 093-047322 Description: Flanged Segment Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 093-050300 Description: Tire & Rim Ass'y. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-046756 Description: Retainer Units Per Assembly: 2 Availability: In Stock Price: $17.45
Index No Ref.: Part Number: Description: Not Shown: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: 090-166646 Description: Brush Holder Weldment Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-166844 Description: Wheel Brush Units Per Assembly: 1 Availability: In Stock Price: $6.98
Index No Ref.: Part Number: 091-432989 Description: Wiper Units Per Assembly: 1 Availability: Call For Info Price:
