Exploded View Parts Ordering: 2012-1H3_354

2012-1H3 354 Online Parts Manual

Serial No: 354-76101 End Date 354-78156

Return to manuals

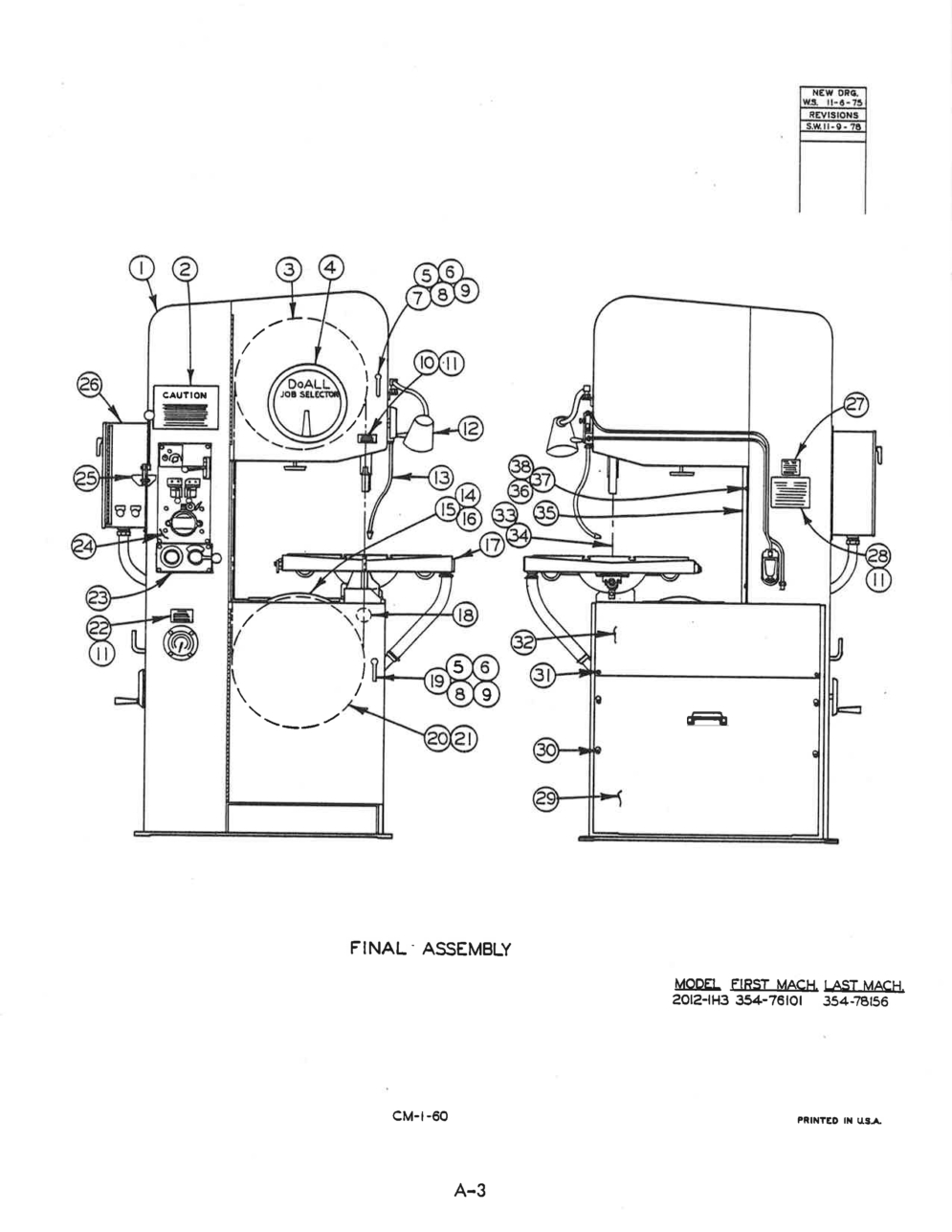

Page Code: CM-1-60

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 095-050035 Description: Final Ass'y. (2012-1H3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 095-049532 Description: Frame Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 094-044765 Description: Caution Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 095-049953 Description: Head Ass'y. (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-468174 Description: Job Selector (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-014610 Description: Job Selector "Optional" (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-015195 Description: Job Selector Cards & Holder "Optional" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 134-011048 Description: Door Handle Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 105-021018 Description: Door Latch Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-326645 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-042290 Description: Roll Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-984229 Description: Scr., Soc. Set 1/4-20UNC x 1/4" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-310334 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-993972 Description: Drive Screw Type "U" #2 x 1/4" Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 094-061413 Description: Lamp Ass'y (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 095-049987 Description: Coolant, Recirculating Mist Type (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 093-049062 Description: Wheel Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-993204 Description: Washer, Lock #10 Std. Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: 16 Part Number: 091-988691 Description: Scr., Rd. Hd. Mach. #10-24UNC x 1/2" Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 503223 Description: Hydraulic Table Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-086017 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-230664 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 095-049961 Description: Drive Ass'y. (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-317891 Description: Tag, Inst. - 208 "Attached to Variable Arm" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-369025 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 095-049979 Description: Hydraulic Ass'y. (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-322727 Description: DBW-15 Buttwelder (See Manual under Separate Cover) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-318071 Description: Blade Shear (See DBW-15 Manual) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-397356 Description: Electrical Control Box Ass'y Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-292730 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 093-020568 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 094-049616 Description: Bottom Drive Cover Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-990192 Description: Scr., Truss Hd. Mach. 1/4-20NC x 3/8" Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 095-033759 Description: Top Drive Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-980052 Description: Scr., Hex. Hd. Cap 1/4-20UNC x 3/8" Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-404178 Description: Saw Band 1/2-8 Precision x 151" Imperial Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 093-045250 Description: Saw Band Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 094-064011 Description: Saw Band Guard (Column) Units Per Assembly: 1 Availability: In Stock Price: $466.59
Index No Ref.: 36 Part Number: 091-988972 Description: Scr., Rd. Hd. Mach. 1/4-20UNC x 3/4" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-993741 Description: Washer, Ext. Shakeproof 1/4 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-992602 Description: Washer, Flat 1/4 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Standard Extra Parts (Not Shown) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: 090-108531 Description: Wrench, 1-1/8" Table Tilt Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: 091-995688 Description: Allen Wrench Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-185000 Description: Upper Saw Guide Holding Screw Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-982462 Description: Scr., Soc. Hd. Cap 1/4-20UNC x 1-3/4" Lower Saw Guide Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-402386 Description: Saw Guide Insert Pack Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-030112 Description: Upper Saw Guide 1" Ass'y. (See Detail) Units Per Assembly: 1 Availability: In Stock Price: $467.67
Index No Ref.: Part Number: 090-177320 Description: Lower Saw Guide 1" Assiy. (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 080-450836 Description: Universal Cal. Work Fixture (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
