Exploded View Parts Ordering: 2012-1A_340

2012-1A 340 Online Parts Manual

Serial No: 340-74101 End Date 340-78421

Return to manuals

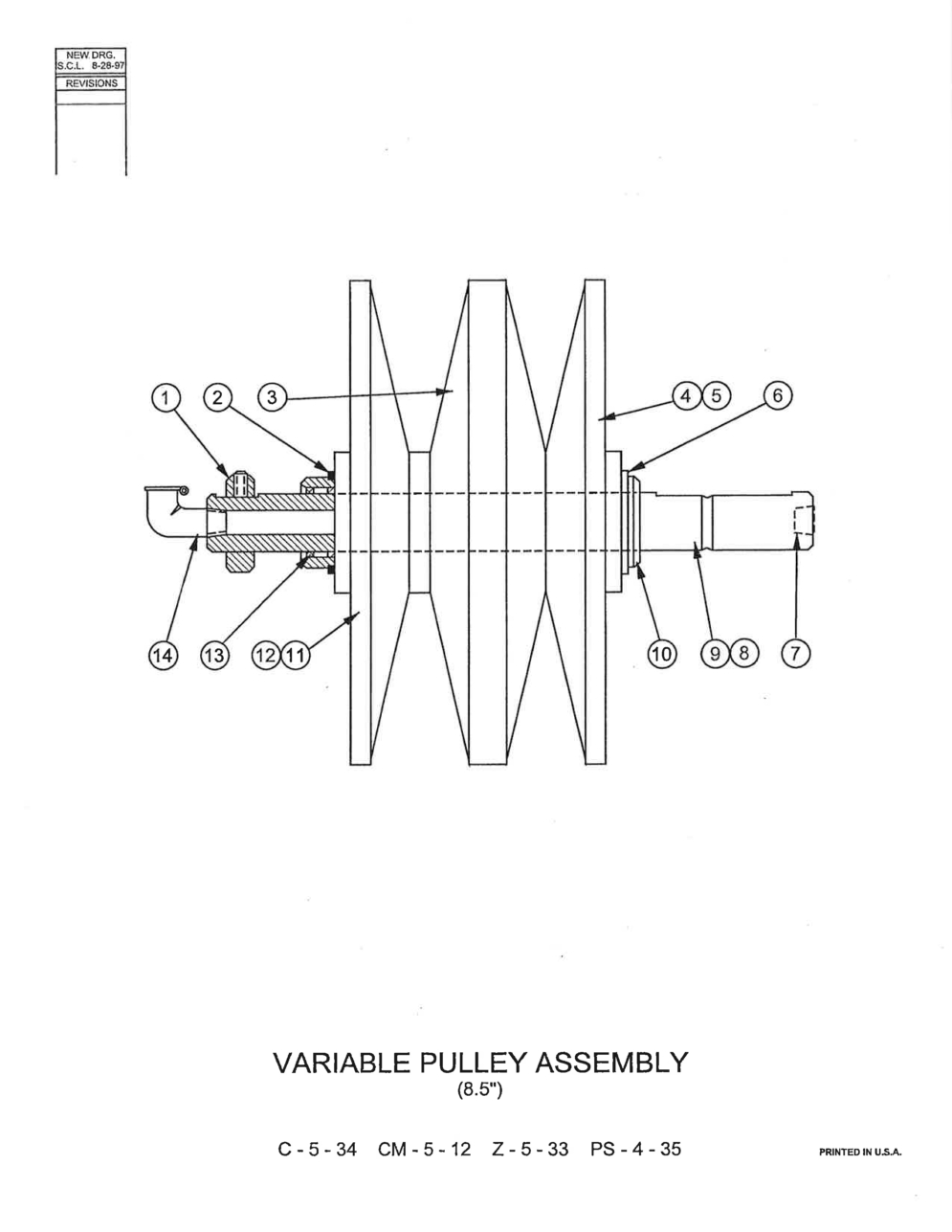

Page Code: C-5-34

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 135-093359 Description: Variable Pulley Assembly (8.5") Units Per Assembly: Availability: In Stock Price: $2,473.33
Index No Ref.: 1 Part Number: 090-061839 Description: Set Screw Collar Units Per Assembly: 1 Availability: In Stock Price: $7.35
Index No Ref.: 2 Part Number: 135-003275 Description: Snap Ring Units Per Assembly: 1 Availability: In Stock Price: $25.50
Index No Ref.: 3 Part Number: 090-202466 Description: Center Sheave Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 135-093375 Description: End Sheave Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 105-046023 Description: Woodruff Key Units Per Assembly: 1 Availability: In Stock Price: $2.79
Index No Ref.: 6 Part Number: 135-003275 Description: Snap Ring Units Per Assembly: 1 Availability: In Stock Price: $25.50
Index No Ref.: 7 Part Number: 091-227488 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 135-093367 Description: Shaft Units Per Assembly: 1 Availability: In Stock Price: $758.55
Index No Ref.: 9 Part Number: 091-007013 Description: Wick Units Per Assembly: A.R. Availability: In Stock Price: $14.79
Index No Ref.: 10 Part Number: 135-093391 Description: Variable Sleeve Assembly Units Per Assembly: 1 Availability: In Stock Price: $1,447.30
Index No Ref.: 11 Part Number: 135-093375 Description: End Sheave Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 105-046023 Description: Woodruff Key Units Per Assembly: 1 Availability: In Stock Price: $2.79
Index No Ref.: 13 Part Number: 135-008985 Description: Washer (Both Ends) Units Per Assembly: 2 Availability: In Stock Price: $12.09
Index No Ref.: 14 Part Number: 111-055125 Description: Variable Oilder Units Per Assembly: 1 Availability: In Stock Price: $53.64
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 091-420455 Description: Cloth Bag Units Per Assembly: 1 Availability: Call For Info Price:
