Exploded View Parts Ordering: 2012-1A_340

2012-1A 340 Online Parts Manual

Serial No: 340-74101 End Date 340-78421

Return to manuals

Page Code: C-3-78

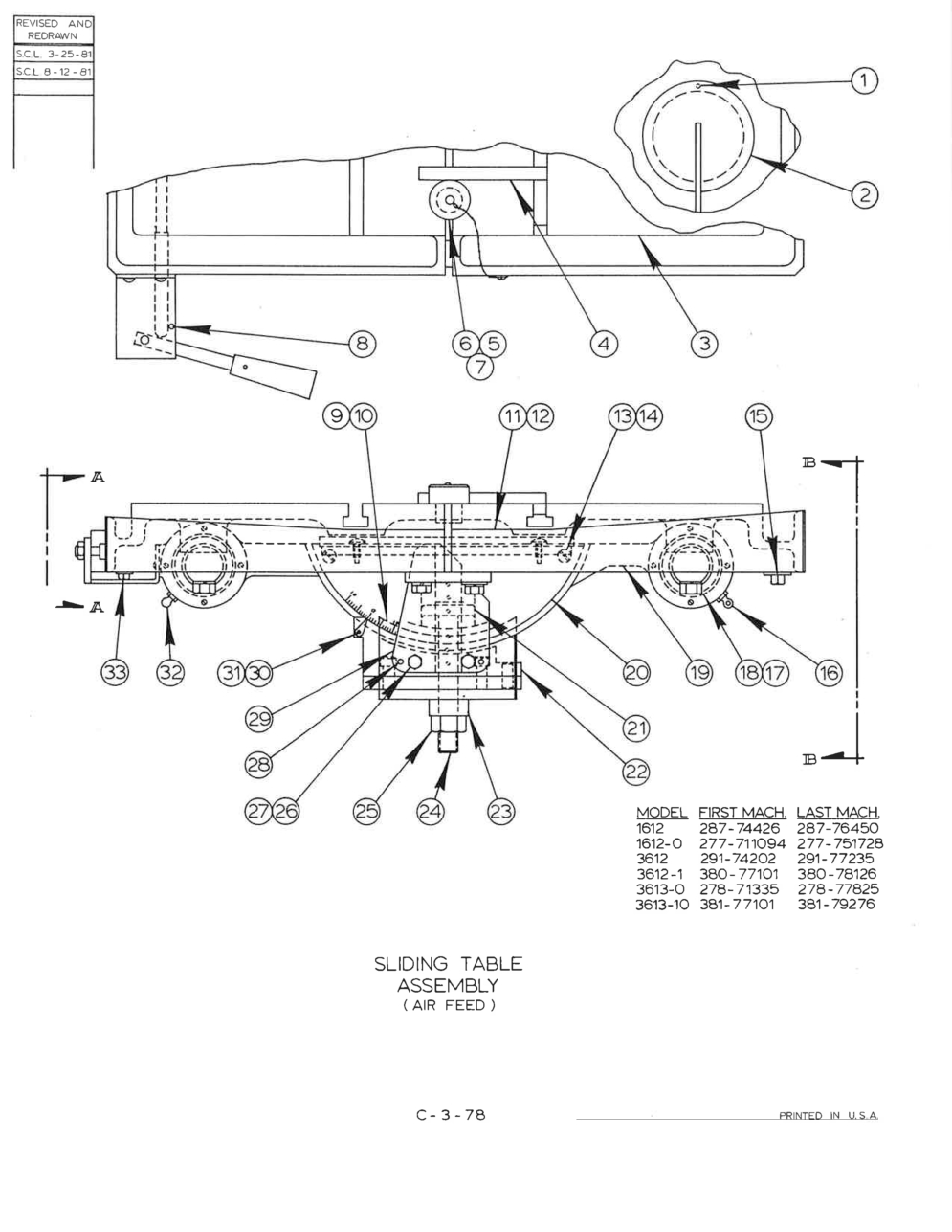

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 095-015327 Description: Sliding Table Assembly(Air Feed) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-042094 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 2 Part Number: 090-104902 Description: Center Plate Units Per Assembly: 1 Availability: In Stock Price: $108.83
Index No Ref.: 3 Part Number: 095-013801 Description: Table Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-253617 Description: Square Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-253930 Description: Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-295907 Description: Chain Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-988519 Description: Screw, Rd. Hd. Mach.#8-32NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-042441 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-410937 Description: Chip Guard Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-450800 Description: Chip Guard Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 095-030458 Description: Pan Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-990192 Description: Screw, Truss Hd. Mach.1/4-20NC x 3/8 Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-988931 Description: Screw, Rd. Hd. Mach.1/4-20NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-993568 Description: Washer, Lock1/4 Shakeproof Int. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 135-065803 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 135-017754 Description: Grease Fitting Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-036476 Description: Ball Bearing Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-051806 Description: Spacer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-507914 Description: Trunnion Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-216219 Description: Trunnion Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-394644 Description: Head Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 090-409038 Description: Cradle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 090-105016 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-981068 Description: Screw, Hex. Hd. Mach.3/4-16NF x 5 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-991414 Description: Nut, Hex.3/4-16NF Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-980474 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1-1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-993329 Description: Washer, Lock 3/8 Std. Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-338758 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 090-242413 Description: Keeper Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 134-033158 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-988386 Description: Screw, Rd. Hd. Mach.#6-32NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 090-106568 Description: 45 Degree Grease Fitting Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 106-335185 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
