Exploded View Parts Ordering: 2012-1A_340

2012-1A 340 Online Parts Manual

Serial No: 340-74101 End Date 340-78421

Return to manuals

Page Code: C-10-23

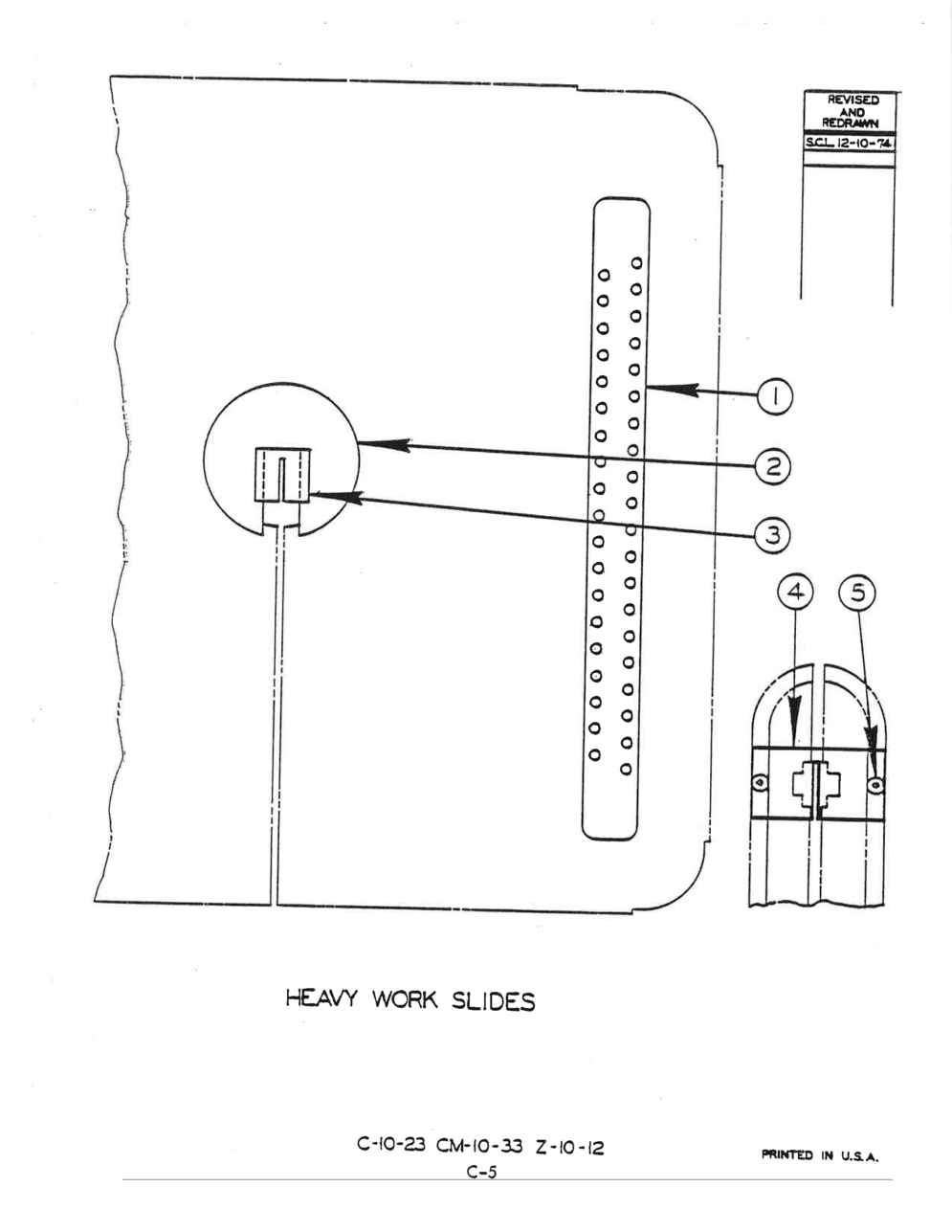

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-450040 Description: Heavy Work Support Assembly (1612,1612-0,1612-1,2013,2013-0,2013-10,2612-1,2614-1,3612,3612-1,3613-0,3613-10,3613-1,2013-1) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 135-052470 Description: Heavy Work Support Assembly (1613-2,2613-2,3613-2,6013-2,ZS-3620,ZV-3620,ZW-3620) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-006921 Description: Heavy Work Slide Assembly (2612-2H) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 106-233190 Description: Work Transport Bar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-279506 Description: Center Plate(Assembly #90-450040 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 106-234529 Description: Center Support(Assemblies #90-450040 & 135-052470) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-178145 Description: Center Support (Assembly #094-006921 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-983205 Description: Screw, Fl Hd. Soc. Cap 1/4-20NC x 3/4 (Assembly #094-006921 Only) Units Per Assembly: 2 Availability: Call For Info Price:
