Exploded View Parts Ordering: 2012-1AT_341

2012-1AT 341 Online Parts Manual

Serial No: 341-74101 End Date 341-77116

Return to manuals

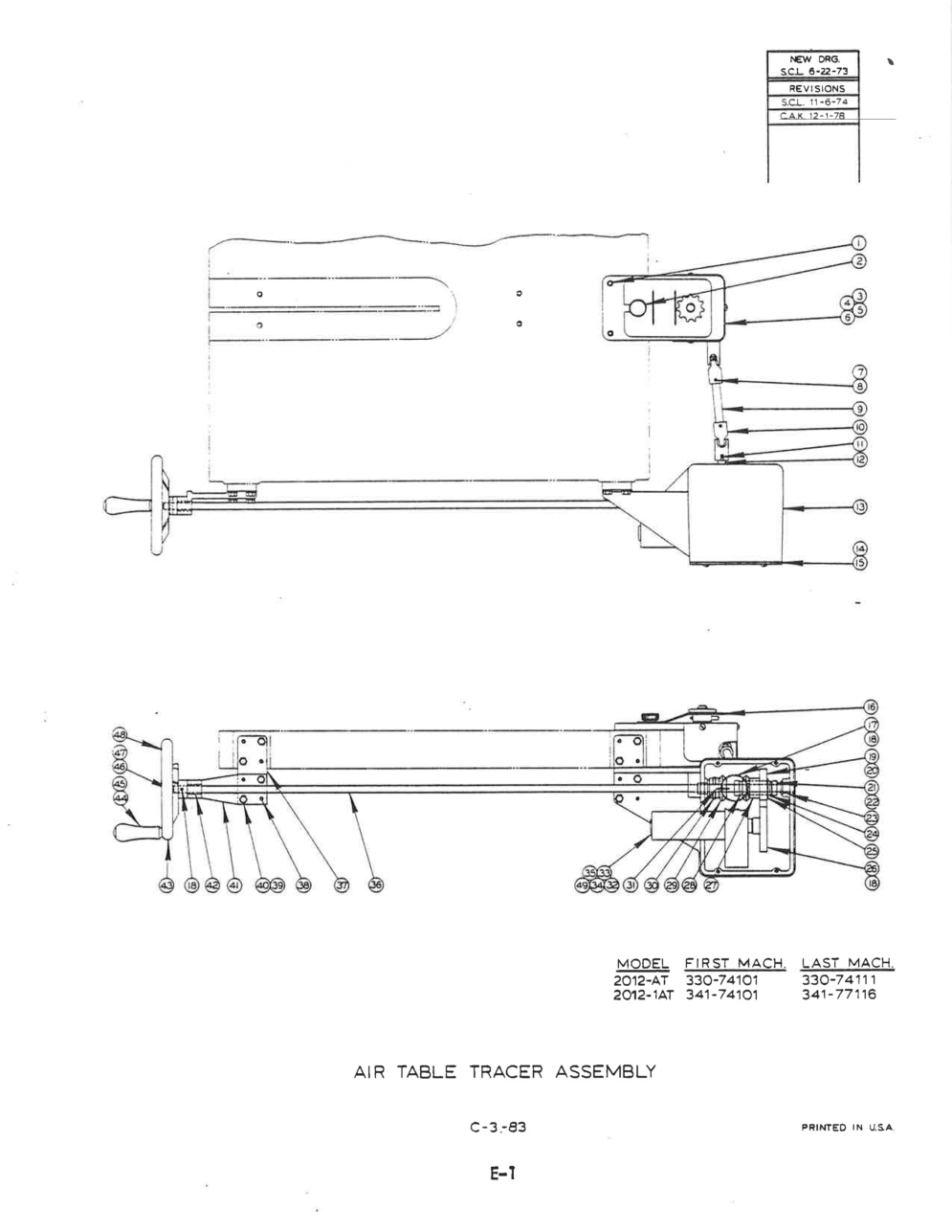

Page Code: C-3-83

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 503006 Description: Air Table Tracer Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-107269 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-087288 Description: Thumb Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 094-046836 Description: Contour Attachment Sub-Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-315069 Description: Sprocket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 094-033107 Description: Contour Clamp Ring Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-315077 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4" Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-042573 Description: Roll Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-314401 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-095547 Description: Universal Joint Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-042441 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-314419 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 095-031399 Description: Gear Box Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 093-024339 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 16 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-499138 Description: Chain Guide Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-314344 Description: Miter Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-042615 Description: Roll Pin Units Per Assembly: 3 Availability: In Stock Price: $1.28
Index No Ref.: 19 Part Number: 091-313726 Description: Change Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-313759 Description: Key Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 22 Part Number: 134-054105 Description: Collar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-313692 Description: Flanged Bearing Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 135-086882 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $4.00
Index No Ref.: 25 Part Number: 091-322867 Description: Shim Option List Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-313734 Description: Spur Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-313718 Description: Miter Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-313742 Description: Brass Sleeve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-313700 Description: Miter Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-314369 Description: Spring Plunger Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 090-130766 Description: Key Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-313643 Description: Gear Motor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 090-042292 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 34 Part Number: 091-265967 Description: Stud Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-992602 Description: Washer, Flat 1/4" Std. SAE Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-314351 Description: Handwheel Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-086231 Description: Adaptor Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-338756 Description: Dowel Pin Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-980300 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1 1/4" Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-993238 Description: Washer, Lock 5/16 Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 090-202052 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 135-006476 Description: Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 094-033693 Description: Contour Handwheel Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-181164 Description: Handle Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 45 Part Number: 091-181172 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 091-256297 Description: Name Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 091-993972 Description: Drive Screw #2 x1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 090-486432 Description: Servo Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 091-191155 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Items Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 093-038180 Description: Guard Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-318261 Description: Gasket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-315093 Description: Upper Saw Guide Block Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-315085 Description: Lower Saw Guide Block Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-161688 Description: Insert Assembly 1/4" Units Per Assembly: 4 Availability: In Stock Price: $188.60
Index No Ref.: Part Number: 090-161704 Description: Insert Assembly 3/8" Units Per Assembly: 4 Availability: In Stock Price: $186.26
Index No Ref.: Part Number: 134-085026 Description: Washer Units Per Assembly: 2 Availability: In Stock Price: $1.42
Index No Ref.: Part Number: 091-318790 Description: Upper Saw Guide Block Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-318782 Description: Lower Saw Guide Block Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-334284 Description: Shim Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-334292 Description: Shim Units Per Assembly: A.R. Availability: Call For Info Price:
