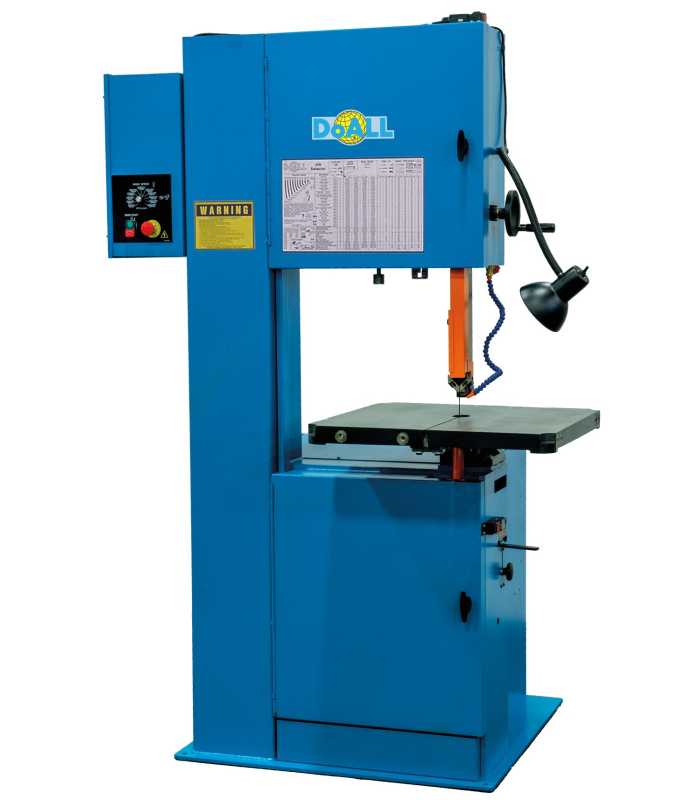

2013-V3 Vertical Contour Band Saw

Machine Capacity: w 20″ x w 13″ (508mm x 330mm)
Production Level: Low

Standard features: Work Light, Chip Blower, Tilt Table and Post Elevating Hand Wheel

The DoALL 2013-V3 vertical contour band saw comes standard with a 3 Hp variable frequency drive motor and a w 20" x w 13" (508mm x 330mm) tilting table for added flexibility.

Fabrication shops, automotive shops, metalworkers and applications requiring the ability to perform contoured cuts on a wide variety of materials choose DoALL 2013-Series vertical band saws to get the job done. They are tough and dependable, with a service life of well over 10 years (when properly maintained).

The DoALL 2013-V3 can be customized to meet your specific needs, with features such as an air glide table for seamless cuts and blade welders to quickly size and mend band saw blades.

SHOP DOALL ONLINE

SKU 290184

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Purchase Includes

Standard equipment and features for your new 2013-V3 Vertical Countour Band Saw:

Table tilt to 45 degrees negative - 10 degrees positive.
20" Aluminum bandwheels with crowned rubber tires.
Upper wheel adjustment 3"
Operator controls mounted on column.
One set of high speed, insert type guide blocks for bands 1/8" to 1/2"
One set of steel guide inserts for bands 1/4", 3/8", 1/2"
Band wheel brush
Variable frequency band drive.
Work light
Manual band tension with indicator.
Post elevating hand wheel.
Chip box
Chip blower (plant air required)
Saw blade guards.
Band door interlocks.
Operation and parts manuals on USB stick.
Recommended job selector
One (1) complimentary DoALL Bi Metal saw blade.
Insert setting gages with wrench and trunnion wrench

Details & Specs

Details:

Specs:

Saw Blade:

Band Width Capacities: 1/8" to 1"
Blade Length: 154"

Band Drive:

Motor HP-3 Hp
Band Speed- Low range 30-320 fpm
Band Speed- High range 550-5500 fpm

Band Tension:

Manual

Coolant System:

Flood-No
Mist Lubricator-Optional

Floor Space Dimensions:

W x L X H -56" x 44" x 80"
Material Pass Height -39"
Machine Weight- 1,250 lbs.

Electrical:

Voltage Requirement- 208V, 230V or 460V-60Hz-3ph
Wye configuration (Must Specify at Order Placement)

Total Amp Draw:

(FLA) 10.7(208) 10.7(230) 5.3(460)Amps

Optional Accessories

Optional Accessories:

12" Travel glide table with (2) point safety buttons on the handles for blade start
18" Travel glide table with (2) point safety buttons on the handles for blade start
Work holding vise to fit table "T" slots (Must use option A , B, or D)
Extended traverse work table: 1100 lb. capacity, four (4) 2" T-Slots, 34 x 42" table area, reduces work height by approximately 4"
DBW-15 welder with grinder, column mounted, for 240 volts and below
DBW-15 welder with grinder, column mounted, for 460 volt
Extended work height 6 inch increments - Call for quote
Work holding jaw with handles
Band mist lubricator-80 psi plant air required
Standard rip fence that attaches to 26 x 26" table
No. 2 standard cut-off and mitering attachment for 26 x 26" table
Disk cutting attachment - Capacity 2-1/2 - 30" diameter
Magnetic wand chip remover
High-speed guide blocks for bands 1/8" to 1/2" (1.5 - 13 mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
Heavy-duty (high-speed) saw guide blocks for bands 1/8" to 1/2" (1.5 - 13 mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
Heavy-duty (high-speed) saw guide blocks for bands 5/8" to 3/4" (16 - 19mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
Heavy-duty (high-speed) saw guide blocks for 1" (27 mm) band, speeds 6,000 fpm (1,830 m/min) less inserts (per pair)
Heavy-duty (high-speed) saw guide blocks with carbide-faced backup for bands 1/8" to 1/2" (1.5 - 13 mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
Heavy-duty (high-speed) saw guide blocks with carbide-faced backup bearings for 5/8" and 3/4" (16 and 19 mm) bands, speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
Heavy-duty (high-speed) saw guide blocks with carbide-faced backup bearings for 1" (27 mm) bands only, speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)

Additional set of hardened tool steel reversible saw guide inserts (set of 4) for any single band width:

Optional tungsten-carbide, single-faced saw guide inserts (set of 4) for any single band width:

II. Type I high-speed roller guide blocks, less rollers (per pair)

Set of Type II rollers for band saw width:
- 1/4" (6 mm)
- 3/8" (9 mm)
- 1/2" (13 mm)

Type II high-speed roller saw guide blocks, less rollers (per pair) reduces work height 1" (27 mm) and restricts table tilt to 27°
Set of Type II rollers for band saw width:
- 1/4" (6 mm)
- 3/8" (9 mm)
- 1/2" (13 mm)
- 5/8" (16 mm)
- 3/4" (19 mm)
- 1" (27 mm)

Additional USB stick of manuals
A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
Five (5) hours installation and operator training
DoALL Cut Above 10 Year Warranty Annual Investment
